Behringer NX1000D Pojačalo

1000-Watt Class-D Power Amplifier with Integrated DSP

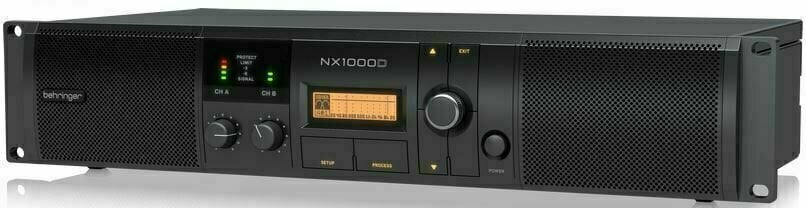

The Behringer NX1000D delivers 1000 watts of Class-D power in a rackmountable chassis, targeting PA systems and live sound rigs. Two channels supply 2 x 300 watts into 4 ohms in stereo, while bridged mono operation produces 1000 watts into 4 ohms for single-speaker setups. Built-in digital signal processing eliminates external racks and lets users control tone, crossover, and delay right at the amplifier. This model is favored by sound technicians seeking compact, DSP-equipped amplification at a reasonable price.

SmartSense Impedance Compensation and Full DSP Suite

With SmartSense loudspeaker impedance compensation, consistent frequency response is maintained regardless of speaker load, avoiding tonal inconsistencies typical of many Class-D amps. The onboard DSP provides 24-bit/96 kHz converters, 8 parametric EQ bands, 2 dynamic EQ bands, crossover filtering up to 48 dB/octave, delay, and dynamics—all accessible via the front-panel LCD or through NX EDIT software via USB.

Power Output, Connectivity, and Processing Specifications

System matching and venue needs are addressed by these specs:

• Power Output: 1000 W total — 2 x 500 W at 2 ohms, 2 x 300 W at 4 ohms, 1000 W bridged at 4 ohms
• Frequency Range: 20 Hz – 20 kHz — covers the full audible spectrum for music and speech

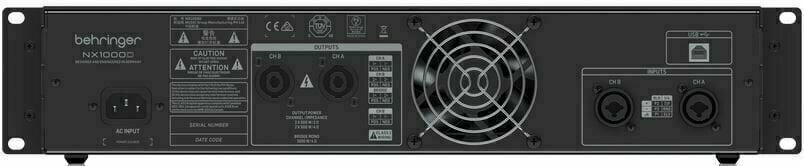

• Combo XLR/Jack inputs let you connect sources from mixers, processors, or players with both balanced and unbalanced signals.
• Outputs: Speakon — twist-lock connectors ensure secure loudspeaker attachment
• Channels: 2 — stereo, dual-mono, or bridged-mono modes selectable from the panel or software
• Weight: 3.4 kg — lightweight Class-D build with switch-mode power supply

Live Sound Engineers and Installation Professionals

Those operating small and mid-sized PA systems benefit from the integrated DSP, which removes the need for additional racks and reduces cabling. Installation contractors appreciate SmartSense, keeping tonal balance steady across zones with different cable lengths and speaker impedances. The NX1000D serves audio professionals looking for DSP integration without the bulk or cost of touring-level gear.

Behringer NX Series — Engineered in Germany

Engineered in Germany, the NX Series features high-density Class-D amplifier technology and professional DSP tools in a portable, accessible package. The NX1000D includes SmartSense, NX EDIT software, and Zero-Attack limiter protection across the range.
